HSP45116A

Metric Plastic Quad Flatpack Packages (MQFP)

E E1

-A-

PIN 1

A2 A1

12o-16o

0o-7o

0.40

0.016 MIN

0o MIN

PLANE

0.005/0.009

0.13/0.23

WITH PLATING

BASE METAL

SEATING

0.005/0.007

0.13/0.17

-B-

0.008

0.20

A-B

0.076

0.003

-C-

-D-

-H-

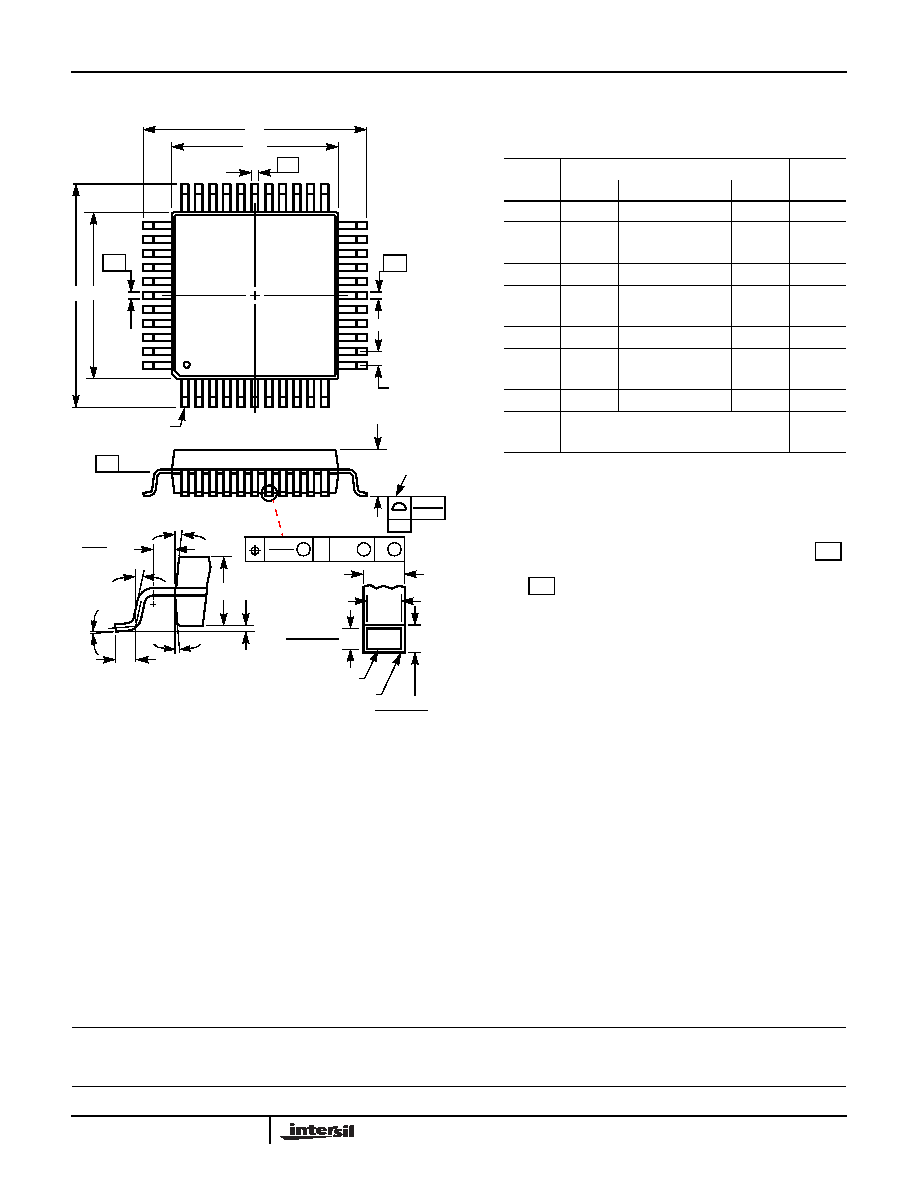

Q160.28x28 (JEDEC MS-022DD-1 ISSUE B)

160 LEAD METRIC PLASTIC QUAD FLATPACK PACKAGE

SYMBOL

INCHES

MILLIMETERS

NOTES

MIN

MAX

MIN

MAX

0.161

4.10

0.010

0.25

0.126

0.142

3.20

3.60

0.009

0.015

0.22

0.38

0.009

0.013

0.22

0.33

1.223

1.233

31.08

31.32

1.097

1.107

27.88

28.12

4, 5

1.224

1.232

31.10

31.30

1.098

1.106

27.90

28.10

4, 5

0.029

0.040

0.73

1.03

160

0.026 BSC

0.65 BSC

Rev. 1 4/99

NOTES:

1. Controlling dimension: MILLIMETER. Converted inch

dimensions are not necessarily exact.

2. All dimensions and tolerances per ANSI Y14.5M-1982.

3. Dimensions D and E to be determined at seating plane

4. Dimensions D1 and E1 to be determined at datum plane

5. Dimensions D1 and E1 do not include mold protrusion.

Allowable protrusion is 0.25mm (0.010 inch) per side.

6. Dimension b does not include dambar protrusion. Allowable

dambar protrusion shall be 0.08mm (0.003 inch) total.

7. “N” is the number of terminal positions.

-C-

-H-
